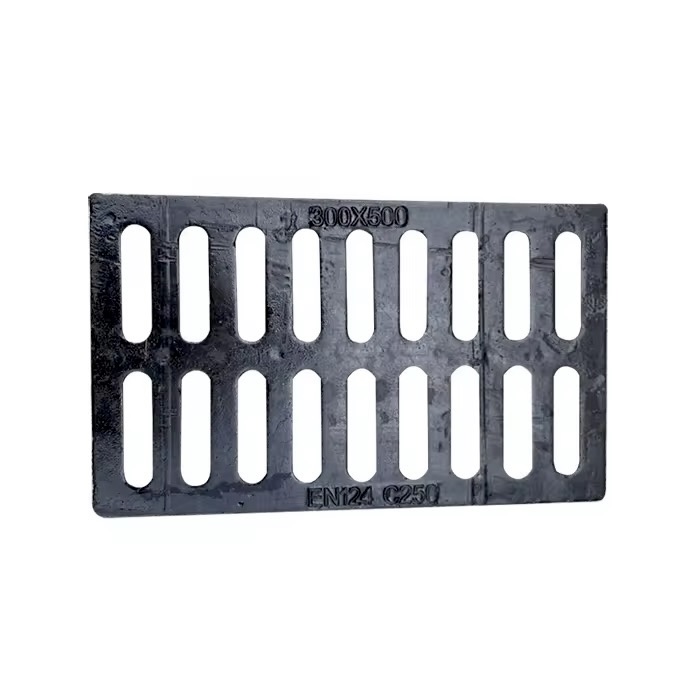

Ductile Iron Gully Grating

Gully gratings have become an integral part of modern drainage systems. These products are used to capture surface water and convey it to the underground drainage system. The grating is placed on top of the gully, allowing water to enter the drainage system whilst also preventing debris from entering and blocking the system.

For getting Quote for this item send us mail along with type , size , body material and pressure rating on websales@pipelineproductsonline.com . we will reply/submit our offer within 24~48 working hours.

Description

Specifications

Product Name Ductile Iron Gully Grating
Material Ductile iron GGG500/7, Gray iron, etc
Dimensions As your demands
Surface bitumen/epoxy painting/etc /or as your request
Load capacity A15,B125,C250,D400,E600,F900
Standard BS EN124-2: 2015
Color grey/black/as your request
Weight 5-120kg/ as your requirement
Feature anti-theft, anti-rust, less noise, long time service, durable, easy to assemble & dismantle
Package wooden pallets or steel pallets, or as requested
Note OEM service is available
Ductile Iron Manhole Cover and Grating EN124:1994 Material: GGG500-7
Class Application Dimension (Frame mm)
A15 Pedestrians, Pedal Cyclists Dia760
B125 Footways, Pedestrians, Car parks 290*290, dia800 …
C250 Kerbside channel of roads 700*700, 600*800 …
D400 Road, hard shoulders, etc. 850*850, 920*920 …
E600 Docks, aircraft pavements, etc. As per your demands
F900 Aircraft pavements, etc. As per your demands
