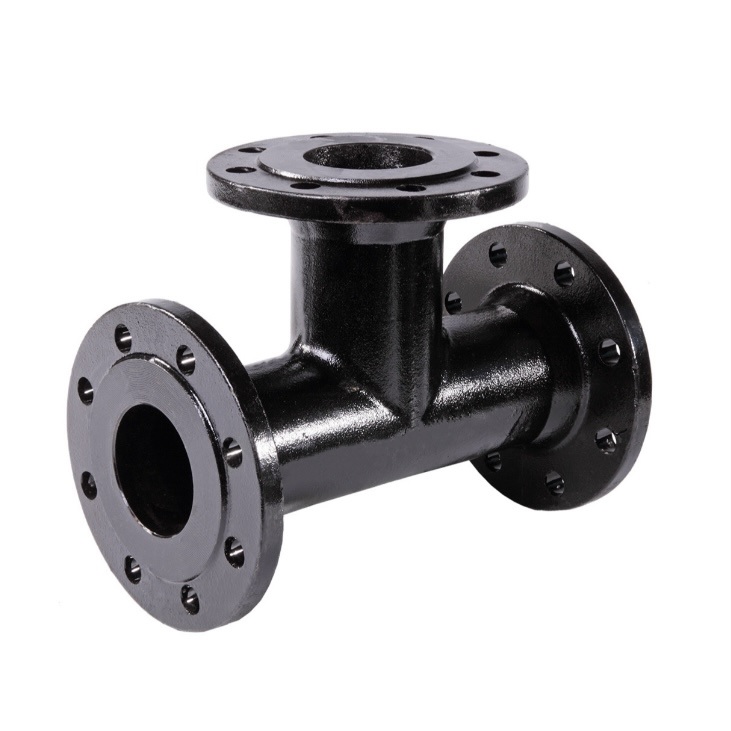

All Flange Tee

Ductile Iron All Flange Tee, manufactured to ISO2531 standards, is engineered for superior performance and longevity in demanding pipeline systems. Its core strength comes from the ductile iron material, which offers exceptional mechanical strength and impact resistance, superior to traditional cast iron.



For getting Quote for this item send us mail along with type , size , body material and pressure rating on websales@pipelineproductsonline.com . we will reply/submit our offer within 24~48 working hours.

Category:

Description

Standard: ISO2531，EN545，EN598

Pressure: PN10/PN16/PN25/PN40

Body material: Ductile iron

Coating:

a). Inside cement mortal lining as per ISO4179 , outside zinc primer black bitumen as per ISO8179 ;

b). Inside and outside with FBE ( fusion bonded epoxy) coating or Epoxy painting ;

c). Inside and outside with Epoxy painting ;

d). Inside and outside wih zinc primer black bitumen.

Gaskets are SBR, NBR or EPDM;

Bolts and Nuts: Carbon steel with galvanized zinc plated G4.8/G8.8, or SS304/SS316.

Package: wooden cases and protection layer.
