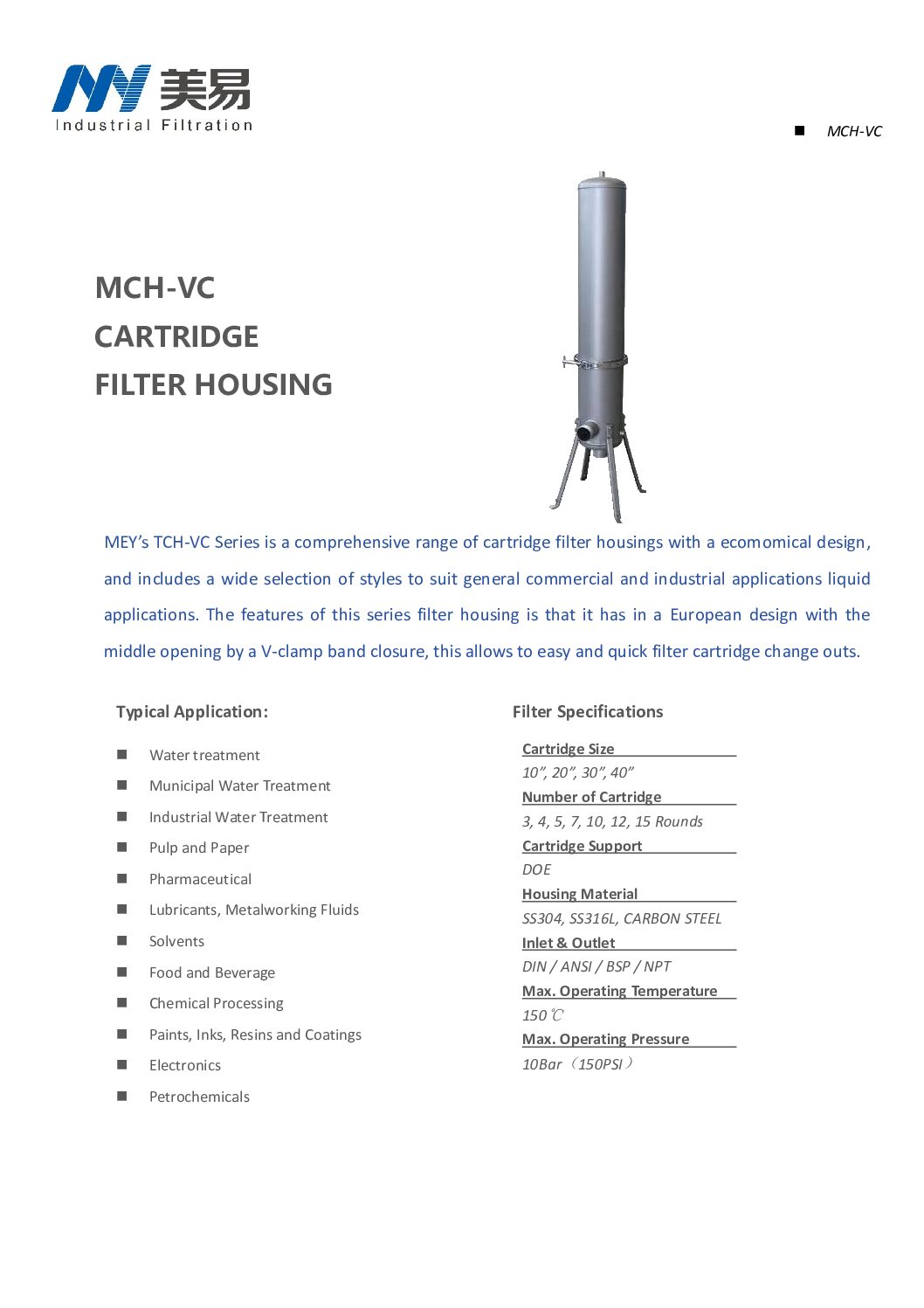

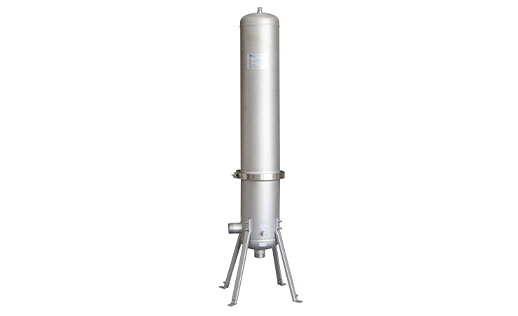

Cartridge Filter Housing MCH-VC Series

The MCH-VC Series is a comprehensive range of cartridge filter housings with a ecomomical design, and includes a wide selection of styles to suit general commercial and industrial applications liquid applications.

The features of this series filter housing is that it has in a European design with the middle opening by a V-clamp band closure, this allows to easy and quick filter cartridge change outs.

These cartridge-filter housings, available in grade SS304 and SS316L material of construction for selection, with rugged and low in cost. They hold filter cartridges from 3 to 15rounds, in either 10-inch, 20-inch, 30-inch, or 40-inch lengths, using industry standard designs (222, SOE, or DOE).and generally the housing accept 2.5” DOE filter cartridge.

In general, the housing finishing with glass bead blasting as standard, meantime,poly coat , electro-polishing is option. And cups and springs are supplied as standard to eliminate by pass filtration.

The housing is specifically designed for use with the large diameter High flow Pleat and High flow spun cartridges to provide a filtration system that offers maximum efficiency, high flow rates and long life.
These high flow rate filter housings, available in grade SS304 and SS316L material of construction for selection. They hold filter cartridges from 1 to 22rounds, in either 20-inch, 40-inch, or 60-inch lengths, using industry standard designs (222, SOE, or DOE).

In general, the housing finishing with glass bead blasting as standard, meantime,poly coat , electro-polishing is option. And cups and springs are supplied as standard to eliminate by pass filtration.

For getting quote and delivery time please drop mail on sales@vanguarduae.com
